Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei

Product Categories

Shenzhen Optfocus Technology Co., Ltd.

Contact Now

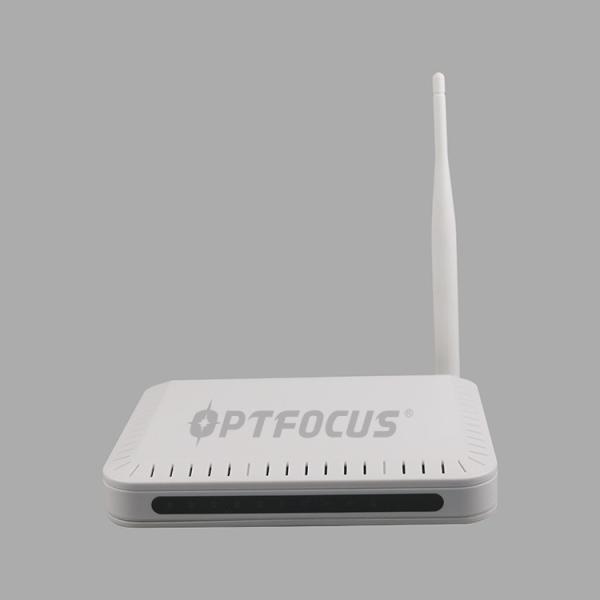

Name: Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei
Brand: OPTFOCUS
Price: 28 USD

Brand Name : OPTFOCUS

Model Number : X622-CW

Place of Origin : Guangdong, China

MOQ : 500

Price : 28-32$

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PCS

Delivery Time : 5-7 work days

Packaging Details : box

Type : FTTx Solutions

Use : FTTH

Color : White

Power supply : 12V DC

Model : OPTFOCUS OFSX622-CW

Brand : OPTFOCUS

Wavelength : TX 1310nm, RX 1490nm; CATV 1540~1560nm

Warranty : 3 Years

Connector Type : SC/UPC

XPON : GPON EPON

Feature : 2020 NEW STYLE+1GE+1FE+CATV+WIFI ONU

Contact Now

OFSX622-CW

1GE+1FE Ethernet ports with Wifi WDM CATV XPON ONU for FTTH solution

Product Description

Features

Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei

Specification

Attributes	X622-CW
Power Supply	12V,1A
Full Loaded Power Consumption	<=7W
Outline Dimension	16711932mm
Weight	<=0.6kg
Environmental requirements	Storage temperature:-30ºC~70ºC Working humidity:10%~85%
Ethernet Standard	IEEE802.3ah/802.3-2005

WIFI	Antenna	2T2R Mode, 5DBI Gain ,Frequency:2.4G ,external antenna
	EIRP	Max 25dBm
CATV	Tech feactures	Description
	Optical wavelength	1540-1560nm
	Optical input range	0-15DBm
	Optical return loss	≥45DB
	Bandwidth	45-1000MHz
	Flatness	+/-1DB
	RF output level	≥72dBuv
	AGC control range	0-14DBm
	RF output return loss	≥14DB
