3.0mm Simplex Optical Cable Yellow Color Multimode Easy Installation

Product Categories
Shenzhen Optfocus Technology Co., Ltd.
Contact Now

3.0mm Simplex Optical Cable Yellow Color Multimode Easy Installation

  • 1
  • 2

Brand Name : DYS/OEM

Model Number : MM50

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5

Price : Negotiable

Number of Conductors : 1

Fiber type : Corning, YOFC, OFS

Jacket Material : LSZH, PVC, OFNP, OFNR

Fiber count : 1

Contact Now

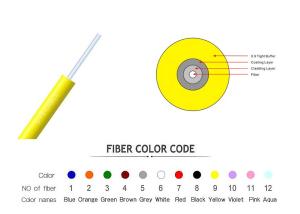

GJFJV Indoor 3.0mm Simplex Multimode(50/125) Optical Fiber Cable

Applications:
1. Structured (premises) wiring systems: campus and/or building backbone (riser) and/or horizontal cabling.
2. Support all computer network applications such as FDDI, Gigabit Ethernet and ATM.
3. Easy to install in ducts, tunnels and trenches. Not recommended for direct burial.

Features & Benefits:

1. These cables are halogen-free (= FRNC and LSNH) and watertight and therefore suitable for internal and external use. Consequently splicing can be avoided and the installation gets more cost-effective.

2. These cables are all dielectric (metal-free).
3. Predicted lifetime > 30 years.

4. Suited to SM fiber and MM fiber (50μm and 62.5μm)

3.0mm Simplex Optical Cable Yellow Color Multimode Easy Installation

Technical Parameters:

Out sheath

Diameter

Tight buffer

Diameter

 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
3.0×5.0 2.0 34.00 1000 300 1000 500 20D 10D -20+60
4.0×7.0 2.8 42.00 1000 300 1000 500 20D 10D -20+60

Optical Characteristics:
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fibe
